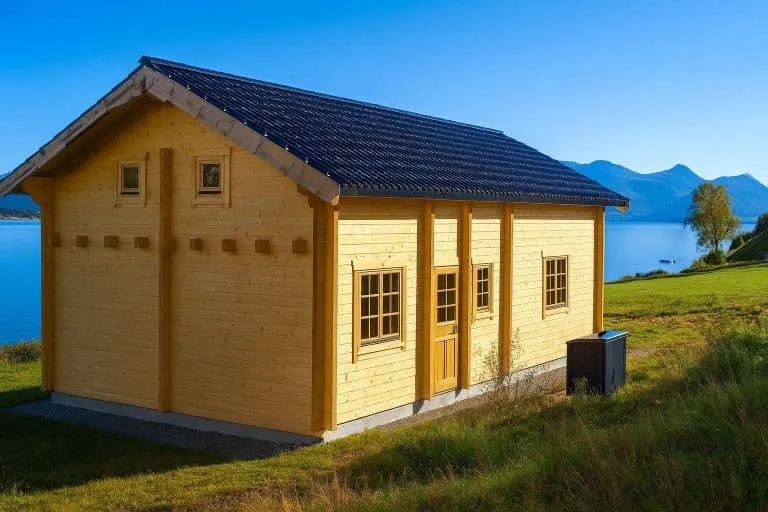

Log cabin Elbe - large vacation home with sleeping loft
Our Elbe log cabin is available with either 70 mm or 94 mm thick logs. A highlight is the cozy sleeping loft, which is easily accessible via a 1/4 spiral wooden staircase with railings.
This sleeping loft measures 5.70 m x 6 m and is also very spacious with a maximum headroom of 1.90 m. The total usable area for the log cabin is 103 m², so it can also be used very well as a main house. Another highlight is the exterior door with 5-point locking, which not only meets the highest security requirements, but can also be designed to look as desired.
In addition, this beautiful and spacious wooden holiday home is fitted with high-quality, residential-grade windows with a 1.1 U.G. value, all of which have a so-called one-hand tilt and turn function. With regard to the interior fittings, special requests can also be taken into account to a certain extent!
| Article | Price | Assembly price | PDF Download |
|---|---|---|---|
| Elbe 1 in 70mm | EUR 43,442.00 | EUR 7,500.00 | ➥ Drawing/floor plan |
| Elbe 2 in 94mm | EUR 50,982.00 | EUR 7,700.00 | ➥ Drawing/floor plan |
The prices quoted are cash prices and are inclusive of VAT. 19 % VAT. Assembly prices are optional, you can also order all houses without assembly. Decorations, roofing felt and assembly materials are not included in the kit price. Some of the houses shown here are custom-built and may differ from the respective standard model in terms of construction and appearance, depending on the design. Some of the log cabins shown are painted with colors that are not included in the scope of delivery and services. All dimensions are approximate and subject to change.
Technical data / equipment
70 mm or 94 mm solid logs
6.04 m x 11.70 m external dimensions / 70 m² floor area
5.70 m x 6.0 m walk-in sleeping loft, therefore more than 100 m² usable area!
Ridge height 5.05 m
Side wall height: approx. 3.64 m / 2.34 m below the sleeping loft
112 x 94 mm base frame under the walls
44 x 94 mm base frame under the floorboards
Double-skin roof with 20 mm tongue & groove formwork
Roof insulation 180 mm rock wool WLG 035 + vapor barrier foil
Floor insulation 80 mm rock wool, 26 mm floor boarding
Residential windows in one-hand tilt-and-turn with 1.1 U.G. value
Exterior doors with 5-point locking (optics selectable)
Solid wood interior doors with fittings and lock

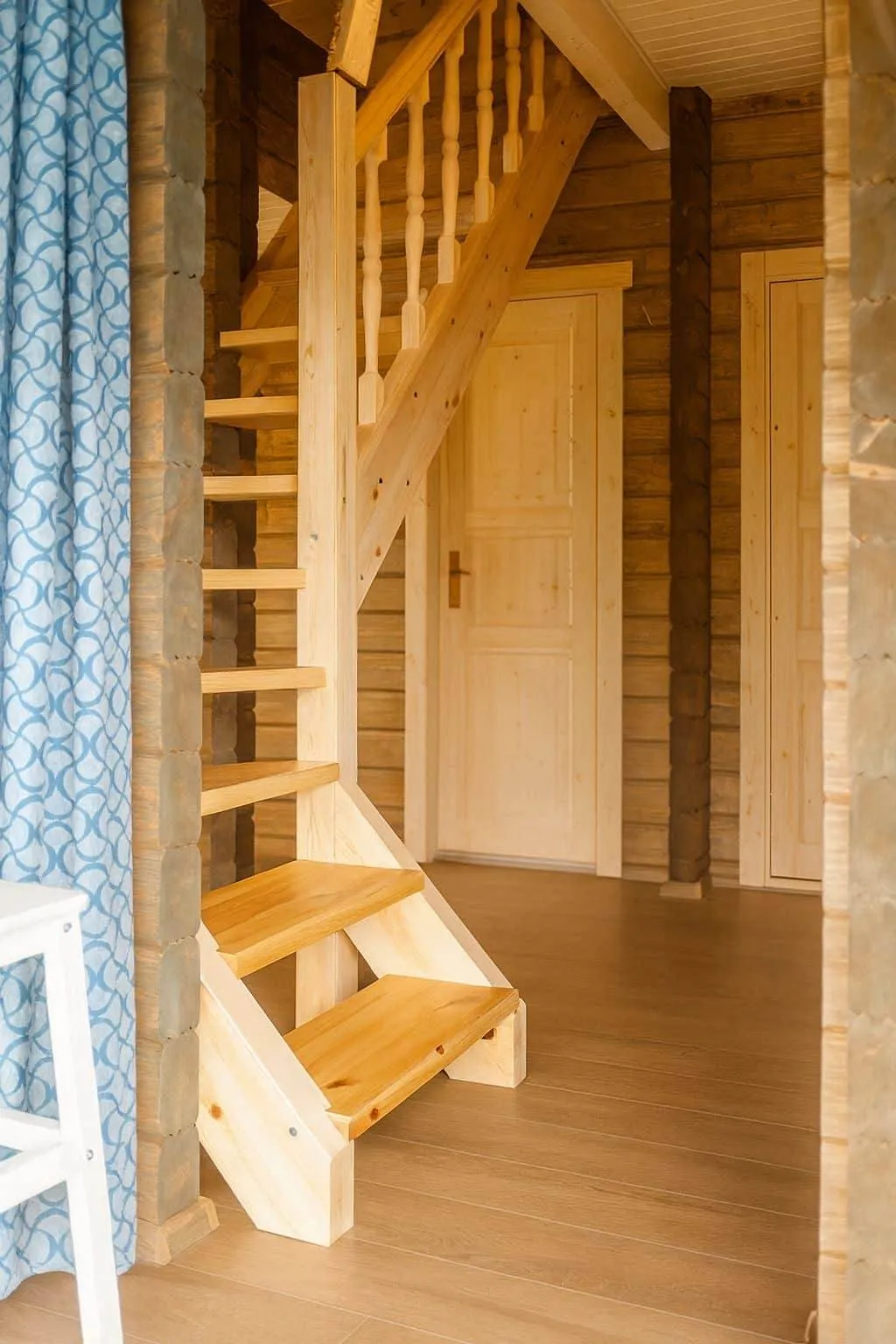

1/4 spiral staircase with railing
Personal and expert support
